Back-to-Back Distance Measuring Gauges

Electronic gauge is designed for measuring back-to-back distance of railway, metro and tram wheels in the course of checkup, examination, repair and formation of wheel sets. Measurements are made directly on rolling stock without wheel set roll-out.


Back-to-back Distance Measuring Gauge IMR Series. Specification

Name of parameter Value
Measurement range, mm L±25 (L — nominal distance)
Measurement error, mm ±0.1
Indication discreteness 0.1mm, or 0.01 inch **
Display build-in, LED
Operating temperature, °С -5...+40
Weigh, kg 1
Dimensions, mm (L+137)x124×22
Power supply rechargeable batteries 2xAAA, 1.2V
Connection to PC Bluetooth

Back-to-back Distance Measuring Gauge IMR Series. Complect Set

Name Quantity Weight, kg
The measuring gauge IMR series 1 piece 1
Charger 1 piece 0,2
Manual 1 piece
Case 1 piece
Calibration tools (option) on request

Back-to-back Distance Measuring Gauge IMR-L Series. Specification

Name of parameter Value
Measurement range, mm 1340...1610 or on request
(nominal distance ± 15mm)
Measurement error, mm ±0,2
Indication discreteness 0.1mm, 0.01mm * or 0.01 inch
Display build-in, LED
Operating temperature, °С -15...+50
Weigh, g 950
Dimensions, mm 234,2×87,7×32
Power supply rechargeable batteries 4xAAA, 1.2V
Connection to PC Bluetooth

Back-to-back Distance Measuring Gauge IMR-L Series. Complete Set

Name Quantity
Back-to-back distance measuring gauge, IMR-L series 1 piece
Charger 1 piece
Manual 1 piece
Case 1 piece
Calibration tools (option) on request

Back-to-back distance measuring gauge, IMR Series

The method of measurement is based on direct measurement the distance by contactless laser sensor RF603 Series.

Electronic gauge contains ball support to place the gauge onto the internal surface of the wheel, two side supports to base the gauge to the wheel flange, two bottom supports or the rails and contactless laser sensor.

There are a digital numeric display and control buttons on the front panel of the gauge. “Charge” connector for charging device connection is situated on the top panel of the gauge.

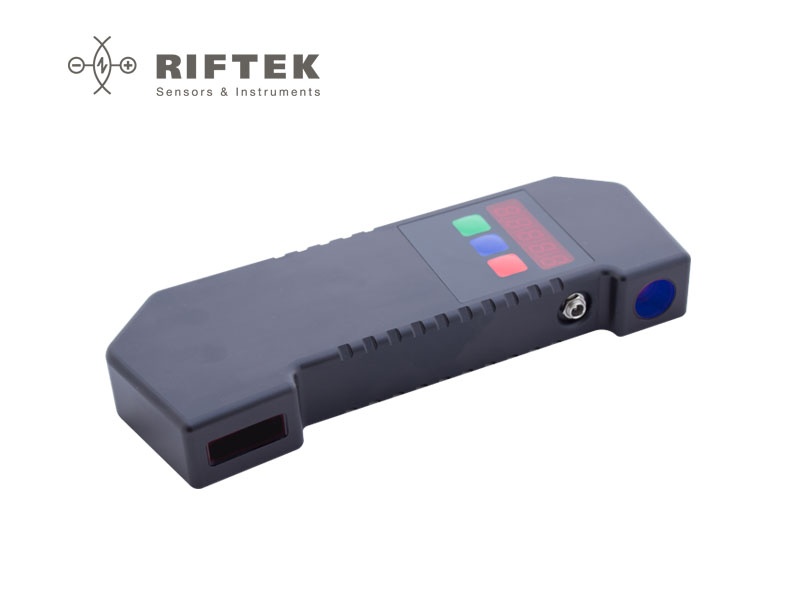

Back-to-back distance measuring gauge, IMR-L Series

The method of back-to-back distance measurement is based on the direct measurement the distance by laser triangulation sensor RF600 Series in-built onto the gauge.

Back-to-Back Distance Measuring Gauge IMR-L Series

Order information for Back-to-back distance measuring gauge, IMR Series

IMR- D

Symbol Description
D Nominal back-to-back distance, mm

Example: IMR-1590. Nominal back-to-back distance is equal 1590 mm.


Order information for Back-to-back distance measuring gauge, IMR-L Series
IMR-L-D
Symbol Description
D Nominal back-to-back distance, mm

Example: IMR-1590. Nominal back-to-back distance is equal 1360 mm.
