Our customers often ask us if we can measure internal holes with a diameter smaller than 9 mm. Until now, we were forced to answer in the negative, since the housing diameter of our smallest triangulation sensor RF609-9/11 is 8.5 mm.

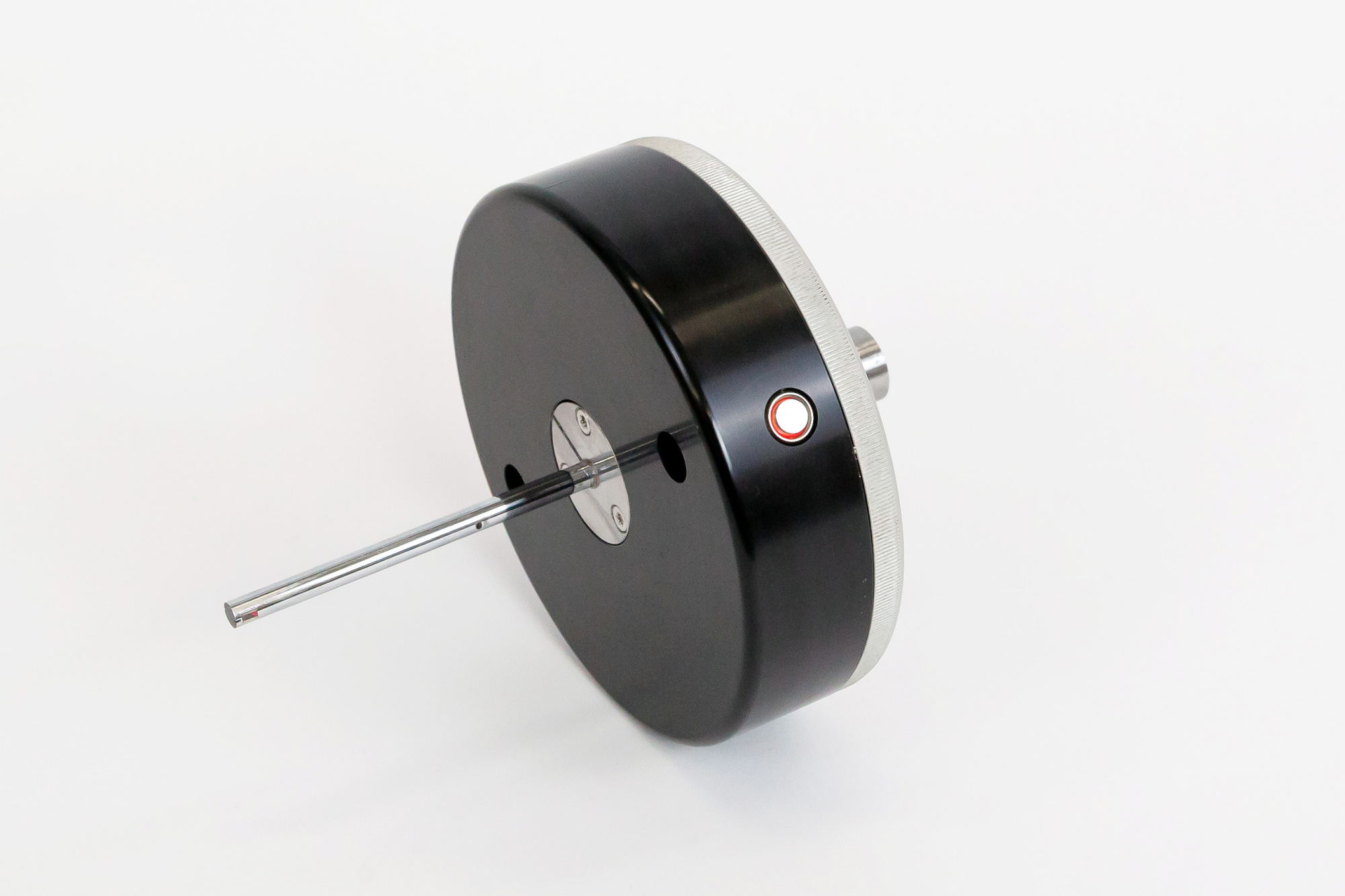

However now we are pleased to present the world’s smallest laser triangulation sensor RF609-Wi-Fi-5/13, designed for measuring holes with a diameter from 5 mm.
Distinctive features of the sensor:
| Parameter | Value | |
|---|---|---|
|
ID measurement range, mm |
5…13 |
|
|
ID measurement accuracy, mm |
±0,002 | |
| Rate, Hz |
9400 |
|
And that's not the limit of our capabilities. This sensor is an interim version, assembled to test new technology and design. Later this year, we plan to begin mass production of the final version of the sensor, with a housing diameter of just 4 mm.
The RF609-4/12 sensor (with an internal diameter measurement range of 4...12 mm) will be available in three modifications, including the Rt and Wi-Fi versions.
Watch the demo video here.
